Figure No.: HJS14J102L2040Y130

Summary description:

key word:

Category:

Axle

E-mail:

nedved@hj-machine.com

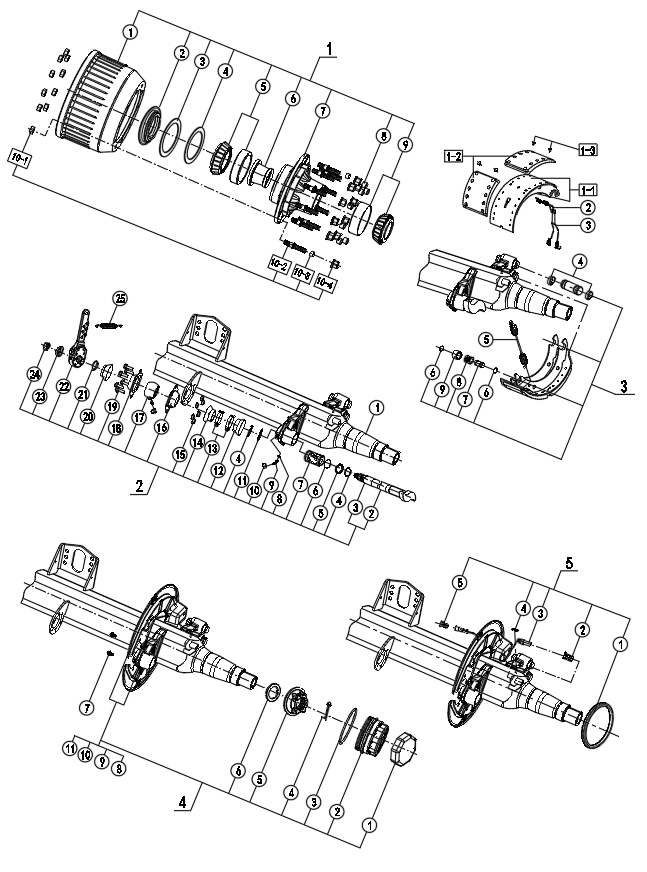

Product Accessories List Exploded View Diagram Product Manual

Consultation

Related products

零件清单
Description
Linked Parts List

Serial Number		Name	Part drawing number	Quantity	Serial Number		Name	Part drawing number	Quantity
1	Wheel end assembly			"2"	2	25	tension spring	HJB12006-065	2
	1	Brake drum	HJB14006-031	2	3	Brake shoe assembly			"2"
	2	Oil seal seat assembly	HJB14006-074/A	2		1-1	Shoe Welding Assembly	HJB14006-036	4
	3	Oil seal in wheel drum (large)	HJB14006-034	2		1-2	Friction plate	HJB14006-037	8
	4	Oil seal in wheel drum (small)	HJB14006-033	2		1-3	Rivets	HJB12006-067X	80
	5	Bearing	32219	2		2	Lock spring II	HJB12006-070	2
	6	Oil separation sleeve	HJB14006-083	2		3	Locking spring I	HJB12006-069	2
	7	Hub	HJB14006-038A	2		4	Support pin circlip	HJ09F3200-301	8
	8	Tyre Bolt Sheath	HJB12006-081/ECO	20		5	tension spring	HJB12006-066	2
	9	Bearing	33215	2		6	Card spring	HJB12006-042	8
	10-1	Nut	HJB12006-049-2	20		7	Brake shoe roller shaft	HJB12006-022	4
	10-2	Tire Bolt	HJB12006-049S-1	20		8	Brake shoe roller sleeve	HJB12006-020	4
	10-3	Steel ring positioning sleeve	HJB12006-058S	4		9	Brake shoe roller	HJB12006-021	4
	10-4	Combination nut	HJB-401103	20	4	Seal lock assembly			"2"
2	Camshaft assembly					1	Dust cover protection sleeve	HJB14/16006-007 HT	2
	1	Optical axis welding assembly	HJD14J102L2040Y130-1000	1		2	Dust cover	HJB14006-007GY	2
	2	Camshaft left	HJB16006-035L/696	1		3	O-ring	GB/T3452.1-2005	2
	3	Camshaft right	HJB16006-035R/696	1		4	Cotter Pin	∅ 10 × 80	2
	4	Circlip (large)	HJB12006-063	4		5	Shaft head lock nut	HJB14006-008/Q	2
	5	Camshaft oil seal seat	HJB12006-015	2		6	Stop washer	HJB14006-046	2
	6	O-ring (green)	∅ 45 ×∅2.65	2		7	Bolt	M10 × 16	8
	7	Camshaft support sleeve	HJB12006-011	2		8	Dust cover lower left	HJB14006-003	1
	8	elastic washer	GB/T 93-1987(M8)	2		9	Dust cover upper left	HJB14006-004	1
	9	butter nipple (45 °)	M8 × 1 (45 °)	2		10	Dust cover upper right	HJB14006-005	1
	10	Oil cup cap	HJB12006-079	2		11	Dust cover lower right	HJB14006-006	1
	11	Camshaft adjusting washer	HJ09F3200-403	2	5	ABS assembly			"2"
	12	Dustproof rubber sleeve (large)	HJB12006-040	2		1	ABS gear ring	HJB14006-072	2
	13	Clamp	HJ09F3200-404	4		2	elastic bushing	HJB-701004	2
	14	Dustproof rubber sleeve	HJB-FZ131402-1	2		3	ABS sensor	441 032 808 0	2
	15	Nut	M8	12		4	ABS Line Card	HJB-701006	2
	16	Bracket Fixing Bracket I	HJB12006-012	2		5	Blockage	HJB12006-060	2
	17	Bracket sleeve assembly	HJB12006-032-00	2
	18	Bracket Fixing Bracket Ⅱ	HJB12006-013	2
	19	Bolt	M8 × 25	12
	20	Dustproof rubber sleeve (small)	HJB12006-041	2
	21	Circlip (small)	HJB12006-064	2
	22	Adjusting arm	HJB16006-068	2
	23	adjusting arm gland	HJ09F3200-413	12
	24	Camshaft nut	HJB12006-016	2
