9T White Russian Air Suspension One Axis Belt Lifting (HJ09A1A1-268B-WH)

Summary description:

key word:

Category:

Air Suspension

E-mail:

nedved@hj-machine.com

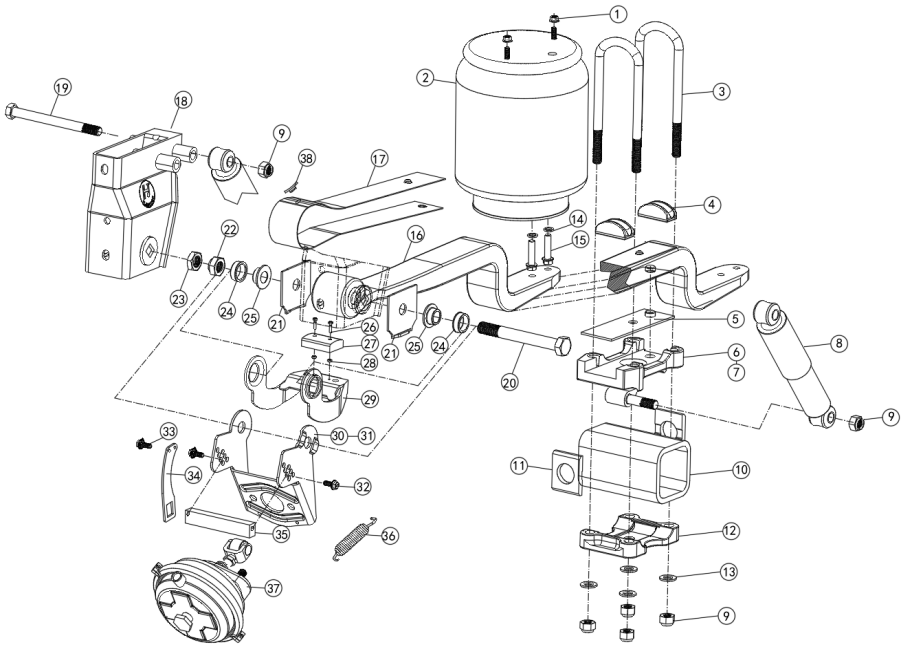

Product Accessories List Exploded View Diagram Product Manual

Consultation

Related products

零件清单
Description
Linked Parts List

Serial Number	Name	Figure No.	Quantity/Axis	Remarks	Vulnerable parts
1	Airbag mounting small nut	HJ12F2935-401-01	8
2	12T Airbag	HJ12F2935-401	2
3	U-bolt -9T	HJ09F2935-281	4
4	BLOCK -9T	HJ09F2935-208	4
5	12T Guide Arm Positioning Plate with Locating Pin Welding Assembly	HJ12F2935-285	2
6	Axle upper cleat assembly right-new 9T	HJ09F3200-140	1
7	Axle upper cleat assembly left-new 9T	HJ09F3200-130	1
8	9T cylinder type shock absorber	HJ09F2935-270X	2
9	Nylon Lock Nut	HJ09F2935-262N	12
10	shaft tube	150*150
11	Connecting plate	HJ09F3200-112	4
12	Lower axle splint-new 9T	HJ09F3200-111	2
13	U-bolt washer -φ24.5 × φ44.4 × 4	HJ09F2935-282	8
14	Elastic washer -16	GB/T 93-1987 16	4
15	Airbag bolt	HJ12F2935-402	4
16	Guide arm assembly -9T (Belarus)	HJ09F2935-220BY	2
17	Guide Arm Guard -9T	HJ09F2935-221	2
18	Bracket Welding Assembly	HJ09F2935BY-210/BT	2
19	Shock absorber retaining bolt -9T	HJ09F2935-261	2
20	long pin bolt	HJ09F2935-251	2
21	Backing plate -9T	HJ09F2935-203	4
22	Pin Nut	HJ12F2935-254	2
23	Lock nut	HJ09F2935-252	2
24	Bushing (Nylon)	HJ09F2935-232	4
25	Bushing (Carbon Steel)	HJ09F2935-231/TG	4
26	Inner six bolts-(M6)	GB/T 70.1 M6x25	4
27	Support block (plastic)-9T	HJ09F2935-233	2
28	Hexagon nut-(M6)	GB/T 6170 M6	4
29	Lifting Arm Welding Assembly -9T	HJ09F2935-230-10	2
30	9T cylinder support/with T44 film cylinder-right	HJ09F2935-207/T44	1
31	9T cylinder support/with T44 film cylinder-left	HJ09F2935-204/T44	1
32	supporting square steel bolt	HJ09F2935-206	4
33	Self-tapping screw	HJ12F2935-205	2
34	Swing arm -9T	HJ09F2935-201	2
35	Support square steel -9T	HJ09F2935-202	2
36	tension spring	HJ09F2935-209	2
37	12T film cylinder assembly	HJ20-001	2
38	Rubber pad -9T	HJ09F2935-222	4
