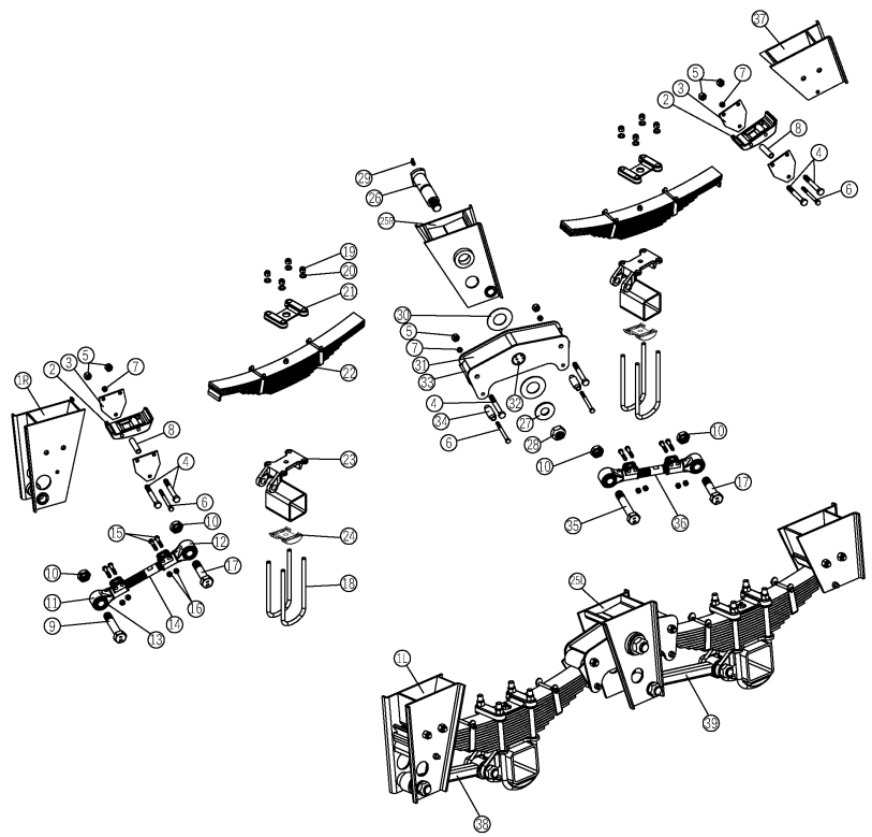

HJ28FX-02-2800SAT-J Exploded Chart Parts Details
Summary description:
key word:
Category:
- 零件清单
- Description
- Linked Parts List
-
Serial Number Specifications Name Quantity 1L HJ28-01-2801SALH Front Bracket Weld Assembly-Left 1 1R HJ28-01-2801SARH Front Bracket Weld Assembly-Right 1 2 HJ28-02-2801-04/ZM Leaf spring cushion block 4 3 HJ28-02-2801-03 Side plate 8 4 GB/T5782-2000 M20x165 Bolt-M20 * 165 12 5 GB/T6182-2000 M20 Nylon self-locking nut-M20 12 6 GB/T5782-2000 M14x160 Bolt-M14 * 160 8 7 GB/T6182-2000 M14 Nylon self-locking nut-M14 8 8 HJ29-02-2901-06 Spacer sleeve 4 9 HJ29-02-2901-05-1 Bolt-M36 * 186 2 10 HJ29-02-2901-05-2 Stamping self-locking nut-M36 8 11 HJ29-02-2906-01 Fitting-Left 2 12 HJ29-02-2906-02 Fitting-Right 2 13 HJ16-0509 Pull rod damping sleeve 8 14 HJ29-02-2906-03/250 Screw -250 1 15 GB/T5782-2000 M14x70 Bolt-M14 * 70 8 16 GB/T6182-2000 M14 Nylon self-locking nut-M14 8 17 HJ29-02-2911-01 Bolt-M36 * 156 4 18 HJ29F-02-4804X/425-01 U-bolt 8 19 HJ29-02-2907-02D U-bolt nut 16 20 HJG13AN228Y-0503 Pin Shaft Washer 16 21 HJ29F-02-4801X(Z)M Upper splint 4 22 KNYBH-203SA 12 leaf springs 4 23 HJ29-02-2910 Torsion base 4 24 HJ29F-02-4805/ZG briquette 4 25L HJ28-02-2802SAL Middle Bracket Weld Assembly-Left 1 25R HJ28-02-2802SAR Middle Bracket Weld Assembly-Right 1 26 HJ29-02-2904-11-1 Balance beam pin 2 27 HJ29-02-2904-11-2 Pin Shaft Washer 2 28 HJ29-02-2904-11-3 Pin Nut 2 29 JB/T7940.2-1995 M10x1 45 ° bend grease nipple-M10x1 2 30 HJ29-02-2904-09 Gasket 4 31 HJ29-02-2904H Balance beam welding assembly 2 32 HJ29-02-2904-05F Bushing 4 33 HJ29-02-2904-06H Side Plate Intermediate Sleeve Welding Assembly 4 34 HJ29-02-2904-08 Spacer Pad 4 35 HJ29-02-2902-07-1 Bolt-M36 * 214 2 36 HJ29-02-2906-03/280 lead screw -280 1 37 HJ28-04-2803H Rear Bracket Welding Assembly 2 38 HJ28-02-2806/400 Fixed Pull Rod Assembly -400 1 39 HJ28-02-2806/434 Fixed Pull Rod Assembly -434 1
