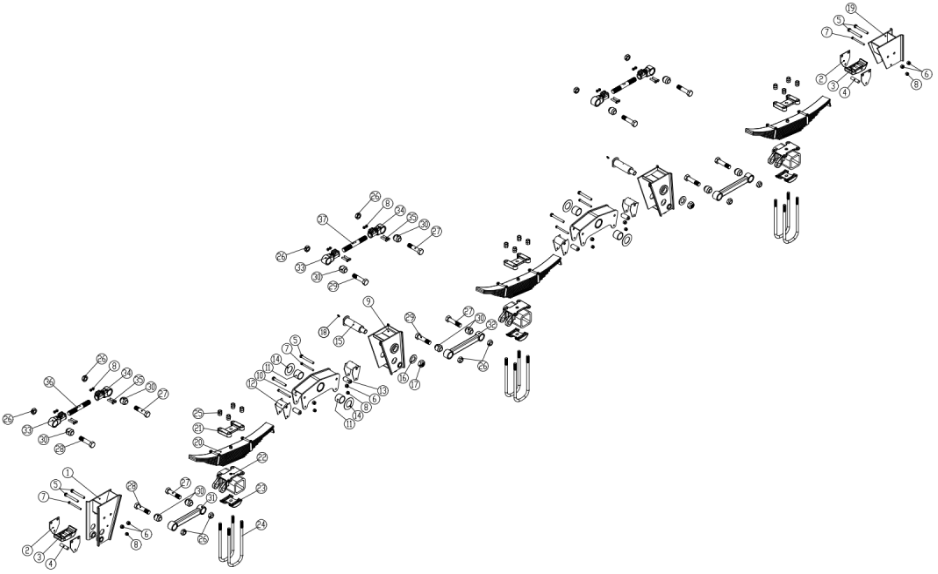

HJ28FX-03-2800-11 Exploded Chart Parts Details

Summary description:

key word:

Category:

Mechanical suspension

E-mail:

nedved@hj-machine.com

Product Accessories List Exploded View Diagram Product Manual

Consultation

Related products

零件清单
Description
Linked Parts List

Serial Number	Specifications	Name	Quantity	Remarks
1	HJ28-02-2801HL HJ28-02-2801HR	Front bracket welding assembly (left) Front bracket welding assembly (right)	1 1	1 piece for left and 1 piece for right; Left
2	HJ28-02-2801-03	Side plate	8
3	HJ28-02-2801-04/ZM	Leaf spring cushion block	4
4	HJ29-02-2901-06	Spacer sleeve	4
5	GB/T5782-2000 M20x165	Bolt-M20 * 165	16
6	GB/T6182-2000 M20	Nylon self-locking nut-M20	16
7	GB/T5782-2000 M14x160	Bolt-M14 * 160	12
8	GB/T6182-2000 M14	Nylon self-locking nut-M14	24
9	HJ28-02-2802L HJ28-02-2802R	Middle bracket welding assembly (left) Middle Bracket Welding Assembly (Right)	2 2	2 left and 2 right pieces respectively; Left
10	HJ29-02-2904H	Balance beam welding assembly	4
11	HJ29-02-2904-05F	Bushing	8
12	HJ29-02-2904-06H	Side Plate Intermediate Sleeve Welding Assembly	8
13	HJ29-02-2904-08	Spacer Pad	8
14	HJ29-02-2904-09	Gasket	8
15	HJ29-02-2904-11-1	Balance beam pin	4
16	HJ29-02-2904-11-2	Balance beam pin washer	4
17	HJ29-02-2904-11-3	Balance Beam Pin Nut	4
18	JB/T 7940.2-1995 M10X1	45 ° Bend grease nipple M10X1	4
19	HJ28-02-2803H	Rear Bracket Welding Assembly	2
20	HJ29-02-2912/11	leaf spring	6
21	HJ29F-02-4801X(Z)M	Upper splint	6
22	HJ29-02-2910	Torsion base	6
23	HJ29F-02-4805/ZG	briquette	6
24	HJ29F-02-4804X/420-01	U-bolt	12
25	HJ29-02-2907-02	U-bolt nut	48
26	HJ29-02-2901-05-2	Stamping self-locking nut-M36	12
27	HJ29-02-2911-01	Bolt-M36 * 156	6
28	HJ29-02-2901-05-1	Bolt-M36 * 186	2
29	HJ29-02-2902-07-1	Bolt-M36 * 214	4
30	HJ16-0509	Pull rod damping sleeve	12
31	HJ28-02-2806H/376	Fixed Pull Rod Weld Assembly -376	1
32	HJ28-02-2806H/434	Fixed Pull Rod Weld Assembly -434	2
33	HJ29-02-2906-01	Fitting-Left	3
34	HJ29-02-2906-02	Fitting-Right	3
35	GB/T5782-2000 M14x70	Bolt-M14 * 70	12
36	HJ29-02-2906-03/230	lead screw -230	1
37	HJ29-02-2906-03/280	lead screw -280	2
