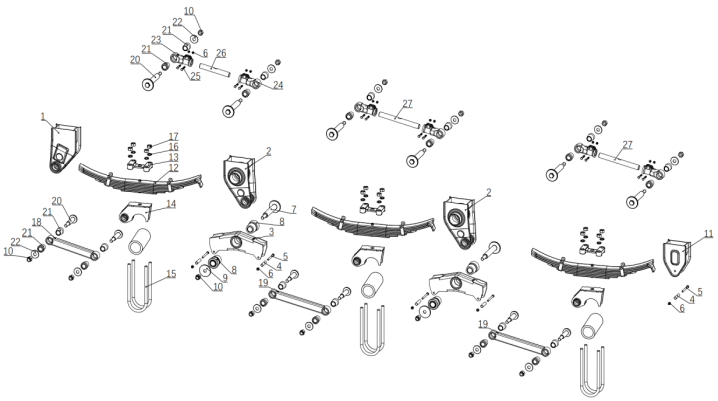

HJ68311125AY7C1360H Exploded Chart Parts Details

Summary description:

key word:

Category:

E-mail:

Serial Number	Figure No.	Name	Quantity
1	HJ68-0100	Front Bracket Welding Assembly	2
2	HJ68-0200	Middle bracket welding assembly	4
3	HJ68-0401	Balance beam welding assembly	4
4	HJ68-0302	Limiting pipe	10
5	HJ68-03B1	Hexagon bolt-M12 * 120	10
6	GB/T6182-2000 M12	Nylon self-locking nut-M12	22
7	HJ68-0501	balance beam shaft	4
8	HJ68-0503-1	Large cone rubber sleeve	8
9	HJ68-0502	Washer	4
10	HJ68-05B1	Self-locking nut	16
11	HJ68-0301	Rear Bracket Welding Assembly	2
12	HJ68-0900/7	Leaf spring assembly	6
13	HJ68-1000Y	Upper mount	6
14	HJ68-1100/Y75	Lower mount	6
15	HJ68-0801/Y390	U-bolt	12
16	HJG13AN228Y-0803	U-bolt washer	24
17	HJ68-08B1D	Lock nut	24
18	HJ68-0700/412	Fixed Link Assembly -412	1
19	HJ68-0700/483	Fixed Link Assembly -483	2
20	HJ68-1201	connecting rod shaft	12
21	HJ68-1203-1	Small cone rubber sleeve	24
22	HJ68-1202	Washer	12
23	HJ68-0601	Link Fitting-Left	3
24	HJ68-0603	Link Fitting-Right	3
25	HJ68-06B1(50)	Hexagon bolt-M12 * 50	12
26	HJ68-0602/295	Connecting rod	1
27	HJ68-0602/364	Connecting rod	2
